Elastic stack - Create authentication portal


 elastic  kibana
 sysadmin
Table of Content

Preface

Create authentication (capative portal) in Elastic stack

Activate X-pack security

add X-pack security feature /etc/elasticsearch/elasticsearch.yml

xpack.security.enabled: true

it’s need restart to be loaded with sudo systemctl restart elasticsearch

Generate Password built-in

cd /usr/share/elasticsearch/bin/
sudo ./elasticsearch-setup-passwords auto

Initiating the setup of passwords for reserved users elastic,apm_system,kibana,kibana_system,logstash_system,beats_system,remote_monitoring_user.
The passwords will be randomly generated and printed to the console.
Please confirm that you would like to continue [y/N]y


Changed password for user apm_system
PASSWORD apm_system = VXu9AfYKf6cz2BMBKaVM

Changed password for user kibana_system
PASSWORD kibana_system = AdAVkllWfIUoMZjbcOw6

Changed password for user kibana
PASSWORD kibana = AdAVkllWfIUoMZjbcOw6

Changed password for user logstash_system
PASSWORD logstash_system = eIqyyrBmq3DGicglGOJI

Changed password for user beats_system
PASSWORD beats_system = uJbFPB9HwuCkfRCVePZz

Changed password for user remote_monitoring_user
PASSWORD remote_monitoring_user = NchL9pglzFQMRtb8MXKX

Changed password for user elastic
PASSWORD elastic = hsB45CS6rW2v3EWupGi2

open /etc/kibana/kibana.yml and add

elasticsearch.username: "kibana"
elasticsearch.password: "AdAVkllWfIUoMZjbcOw6"

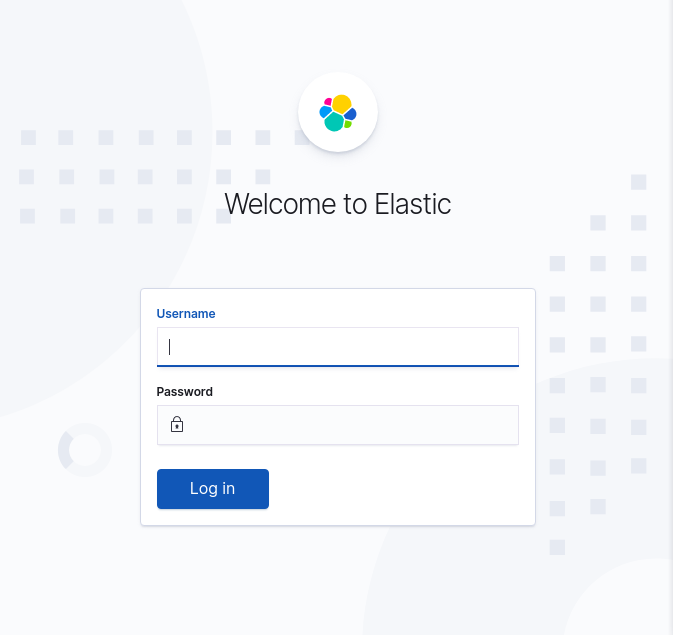

Test authentication

restart kibana service and login on http://13.92.240.53:5601 with superuser

user: elastic
password: hsB45CS6rW2v3EWupGi2

Solve any error

If any error with this method. This command will be usefull

sudo systemctl stop kibana
curl -X DELETE "localhost:9200/.kibana
sudo systemctl start kibana

Resource

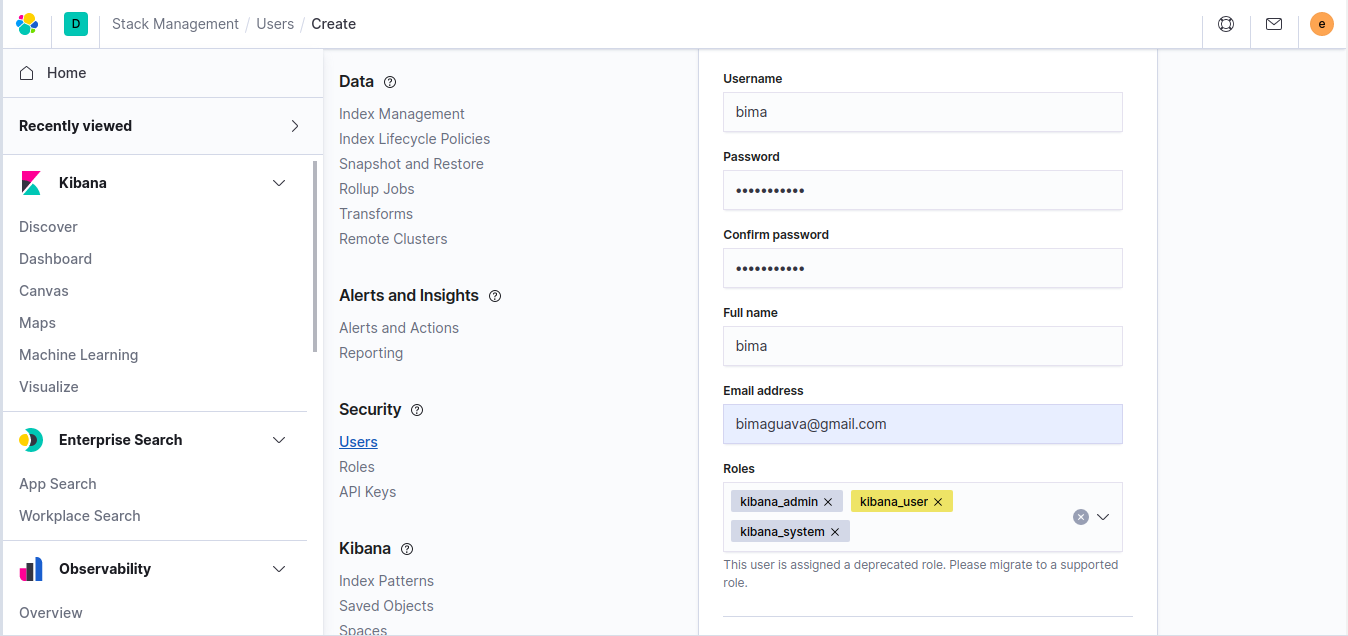

I have already setup my account with kibana_admin roles to as Kibana superuser
